Technology

Poly Plast offers leading in chemical equipment's and composite piping technologies successfully deployed for more than 55 years. Our dedicated Technology Division leads all innovation, testing, Research and Development activities and is constantly evolving based on Customer feedback and Market requirements.

We work closely with numerous International Standards Organizations such as the International Organisation for Standardization (ISO), European Standards (EN), British Standard Institute (BSI), Deutsches Institut furNormung (DIN), American Society for Testing and Material (ASTM), American Society of Mechanical Engineers (ASME), continuously enhance our composite pipes performance and ensure full compliance against industry best practices and standards.

Helical Filament winding Process

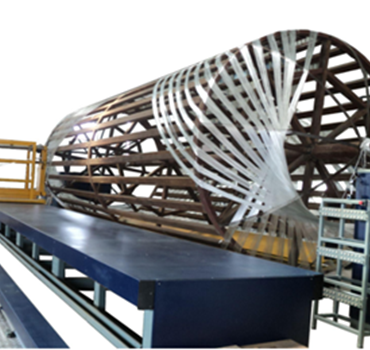

Tanks are produced using the helical (HORIZONTAL BED TYPE) filament winding process by which impregnate glass fiber reinforcement with resin are applied on X - Axis [ROTARY AXIS] and Y - Axis [LONGITUDINAL AXIS]to a precision steel mandrel in a prescribed pattern with Suggested Maximum fiber delivery speed 0- 60/m/Min. Repeated application of wetted fibers results in a multi-layered structural wall construction of the required thickness.

The helical winding process (HORIZONTAL BED TYPE) enables us to manufacture tanks or ducting with diameters up to Ø 6500 mm up to Maximum Winding Length 12000 mm.

Helical Filament winding Process
Helical Filament winding Process

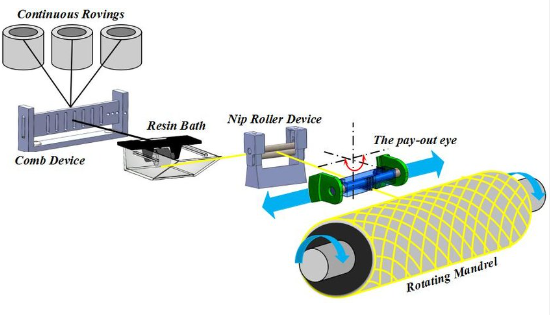

Pipes are produced using the helical (reciprocal) filament winding process by which impregnate glass fiber reinforcement with resin are applied on to a precision steel mandrel in a prescribed pattern. Repeated application of wetted fibers results in a multi-layered structural wall construction of the required thickness.

The helical winding process enables us to manufacture pipes with diameters up to DN 2000 mm.
